The Grundfos HS horizontal split case pump is a single-stage, non-self-priming, between bearing, centrifugal volute pump. The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipework.
The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimising vibration and providing quiet operation.
The HS pump also offers high pump efficiencies throughout the range. High energy efficiency along with long pump life and easy maintenance add up to low life-cycle costs.
The HS pump is available in three configurations – pump with motor and baseframe, pump with baseframe, and bare shaft pump only.
The HS pump is ideal for custom applications and is available in a wide range of variants. The high efficiency and low life cycle costs make the HS ideal for any commercial building, water utility or industrial project.
Applications
Grundfos HS horizontal split case pumps are typically used in these applications:
- Air-conditioning/heating systems
- Public water supply
- District cooling/heating plants
- Cooling systems
- Public waterworks
- Process cooling
- Irrigation.
Features and benefits
- Easy to service: split case design
- Double suction minimises axial load,which extends the life of the wear rings, shaft seals and bearings
- Double volute reduces radial forces and minimises noise and vibration
- Independent bearing housing design allows access to the pump components without removing the top half of the casing
- High energy efficiency
- Low life-cycle costs
- Many product variants available.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner
The SEG range of grinder pumps from Grundfos is specifically designed for pumping effluent and untreated sewage in small communities or sparsely populated areas with no sewer systems or where gravitation systems are unsuitable.
Pressurised systems are the perfect choice for transfer of effluent and sewage, and the SEG range combines cost-effectiveness with maximum protection for the environment by facilitating the use of smaller pressure pipes for minimal investment costs.
The SEG range is designed to reduce energy consumption and to keep downtime costs to a minimum, while maintaining peak performance throughout the system life.
Applications
The Grundfos SEG pumps are specifically designed for pumping untreated wastewater from domestic, commercial or municipal sources. The high discharge pressure enables transfer of wastewater over longer distances.
Features and benefits
- Cable plug connection
- Efficient grinder system
- SmartTrim impeller adjustment
- Unique clamp connection
- Specially designed lifting handle
- Unique cartridge shaft seal
- Modular design
- Heavy-duty ball bearings.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner LEADER Pump
The SL range has been developed to optimise performance in your system, minimising known risk factors and reducing maintenance requirements. Remarkably durable, the SL range offers long lasting, service-friendly submersible wastewater pumping.
The highest standards of motor efficiency ensure substantial energy and cost savings. Motors are based on high-efficiency components, improving motor efficiency and prolonging pump life.
The pumps are available with SuperVortex impellers (SLV) for applications with required low operating hours, dry matter content up to 5 %, and a spherical free passage up to 100 mm, or with the S-tube impeller (SL1) for applications with required high operating hours, dry matter content up to 3 %, and a spherical free passage up to 100 mm.
The S-tube impeller is the only impeller on the market designed to cope with the challenges of modern wastewater with varying dry matter content. The simple and robust design of the S-tube impeller offers world class hydraulic efficiency without compromising free passage.
Applications
The SL pump is designed for the transfer of drainage and surface water, domestic, municipal and industrial wastewater, and process water.
The SL pump is also available in an explosion-proof (Ex) version. SL pumps are available in variants with a stainless steel impeller for aggressive environments.
Features and benefits
- High motor efficiency ensure substantial energy and cost savings.
- Intelligent adaptive controls ensure reliable operation with low energy consumption.
- Integrated analogue sensors offer complete monitoring of pump condition.
- Lifting handle designed for optimum point-of-balance and correct lifting.
- Smooth, easy to clean surface is extremely robust and impact-resistant.
- One cable to the pump, simplifying pump installation, commissioning and maintenance.
- Moisture-proof connector plug ensures that liquid cannot penetrate into the motor.
- Patented SmartSeal auto-coupling gasket provides a completely leak-proof connection.
- Easy-to-open clamp for the quick and easy disassembly of pump from motor unit.
- Double mechanical shaft seal ensures longer operation time with less downtime.
- Short rotor shaft reduces vibrations to protect shaft seals and bearings.
- Choice of SuperVortex or S-tube impeller.
- Replaceable wear ring to return the pump to full efficiency.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner LEADER Pump
The SPO submersible pumps are specially designed for domestic water supply applications.
Available in two basic versions, the SPO can be installed either submersed or dry, depending on individual requirements.
The SPO pumps are made entirely of non-corrosive materials.
All hydraulic parts, including impellers and hydraulic chambers, are made from high-grade stainless steel, DIN W.-Nr.1.4301 (AISI 304).
Applications
The SPO pump is designed for water supply and pressure boosting in private homes and weekend cottages.
The wide product range covers all possible installations in applications such as the following:
- Traditional 5″ or 6″ wells
- Shallow wells
- Rainwater collection in tanks
- Boosting of public water and
- Emptying of garden ponds
- Irrigation of private gardens.
Features and benefits
- Robust and versatile
- Flow up to 6.5 m³/h at a max. pressure of 75 m
- Submersed or dry installation
- Made entirely from non-corrosive materials
- Stainless steel hydraulic parts
- Double mechanical shaft seal
- Plug and pump
- Available with float switch
- Easy to install.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner LEADER Pump

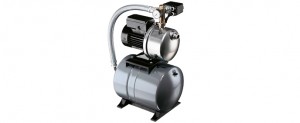

The JP pump is a self-priming, single-stage centrifugal pump with axial suction port and radial discharge port, G 1 or Rp 1. The pump has a built-in ejector with guide vanes for optimum self-priming properties.
JP pumps are available in two material variants.
Material variant A: Cover plate, motor stool and base plate in one unit. The handle is fitted crosswise. Both elements are made of composite material.
Material variant B: Stainless steel cover plate, aluminium motor stool and stainless steel base plate, all separate parts.
The robust design makes the pump suitable for fixed installation. The custom-built composite handle is fitted lengthwise.
The pump is directly coupled to a special fan-cooled asynchronous Grundfos motor that is adapted to the pump performance Single-phase motors have a built-in thermal switch and require no additional motor protection Three-phase motors require external motor protection
Applications
Built for a long, trouble-free working life, the small and handy Grundfos jet pump is suitable for a wide variety of water supply and transfer duties in home, garden and hobby applications as well as in agriculture, horticulture and small-scale service industries.
When used in combination with a pressure control or tank, the JP pump is ideal for small water supply systems.
Features and benefits
- Self-priming
- Stable operation even if there is air in the liquid
- Ideal for small water supply systems
- Compact and handy.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner
S pumps form the backbone of many sewage systems. They are selected for their strength, their durability, and for innovative features such as the SmartTrim impeller clearance adjustment system and the Smart Seal for leakage prevention.
The SmartTrim system used on the S-pumps makes it easy to adjust the factory-set impeller clearance and thus to maintain maximum pump efficiency.
The Grundfos SmartSeal Auto-coupling gasket provides a completely leak-proof connection between the pump and the base unit of the auto-coupling system. The shaft seal is capable of rotating in either direction. When the pumps are installed with separate pipework, sludge sedimentation can be avoided by back-flushing the system at regular intervals.
Applications
The pumps are suitable for the following applications:
- Transfer of unscreened raw sewage
- Transfer of raw water
- Pumping of water containing sludge
- Pumping of industrial effluent.
Features and benefits
- Wide range
- SmartTrim
- Operation with/without cooling jacket
- Submerged or dry installation
- Channel and vortex impellers
- Built-in motor protection
- SmartSeal
- Large free passage
- SuperVortex impeller.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner
The Grundfos DW pumps are robust, portable submersible pumps with a vertical discharge port.
Available with motors from 0.8 to 20 kW, they are designed to handle dewatering at construction sites, at excavation sites, in building drainage and in similar applications where there is a need to pump raw water or/and at high pressure.
DW main parts are made of aluminium in order for them to be as light as possible. This factor, in combination with the compact design and the high-pressure capabilities, make DW pumps portable and easy to handle. The semi-open type impeller is made of high-chrome stainless steel (550HB) in order to increase wear resistance. DW.50.08 (only) has a polypropylene motor housing.
Applications
DW pumps are excellent for dewatering and draining jobs. The portable design, wear resistant parts and high pressure capabilities ensure the reliability, sustained performance, user-friendliness and ease of servicing that are necessary in demanding dewatering applications at sites such as:
- Construction sites
- Excavations
- Tunnels
- Steel works
- Fish ponds
- Underground parking drainage Industrial drainage pits.
Features and benefits
- Durability
- Portability
- User-friendliness
- Ease of servicing High pressure capabilities Control options.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner
The Grundfos range of recirculation pumps is the product of decades of engineering experience. Created to handle large flows with low heads, the SRP models are equally suitable for wastewater treatment plants and flood control.
SRP units come in three main variants – DN 300, 500 or 800 mm, fitted with motors from 0.8 to 24 kW. The units share many features with the AMG and AFG gear-driven mixers and flowmakers, making them instantly familiar to service staff and facilitating easy maintenance.
Recent developments include a triple sealing system for maximum protection of the mechanical shaft seal and a bracket that facilitates very easy installation.
Applications
The pumps are suitable for the following applications:
- Re-circulation of sludge within sewage treatment plants
- Storm water pumping.
Features and benefits
- High efficiency stainless steel propeller
- Electronic leak sensor in gearbox/shaft seal housing
- Wide performance range
- Strong axial gear in slim design for high hydrodynamic efficiency
- Integrated overload and overheat protection
- Good self-cleaning capabilities.
PT. Andalan Inti Rekatama – GRUNDFOS Authorized Dealer – Service Partner LEADER Pump
The Grundfos Hydro MPC booster systems are made to the very highest standards. Thanks to the CU 352 controller, they handle even the most difficult boosting jobs with ease and accuracy.
All components have been combined with focus on quality and efficiency. The Grundfos Hydro MPC booster systems are designed to last: sturdy, compact units with easy access to all service parts. Grundfos Hydro MPC booster systems can be used wherever additional pressure is required. Each booster model has been designed to meet specific customer demands for capacity and control.
The intelligent cascade control ensures that the optimum number of pumps required to meet the demand runs at any time. Together with the CR with IE3 motors, this makes the Hydro MPC the most energy-efficient solution for maintaining a constant pressure during changing flow demands.
Applications
- Schools
- Hotels
- Blocks of flats
- Irrigation systems
- Industry
- Municipal supply systems.
Features and benefits
- Reliable highly efficient
- Highly efficient
- Service-friendly
- Space-saving
- Easy to commission
- Perfectly adapting to the flow
- Low-flow detection
- Application-optimised software
- BUS and Ethernet communication option
- Large, clear display
- Menus in plain text
- Log function.
